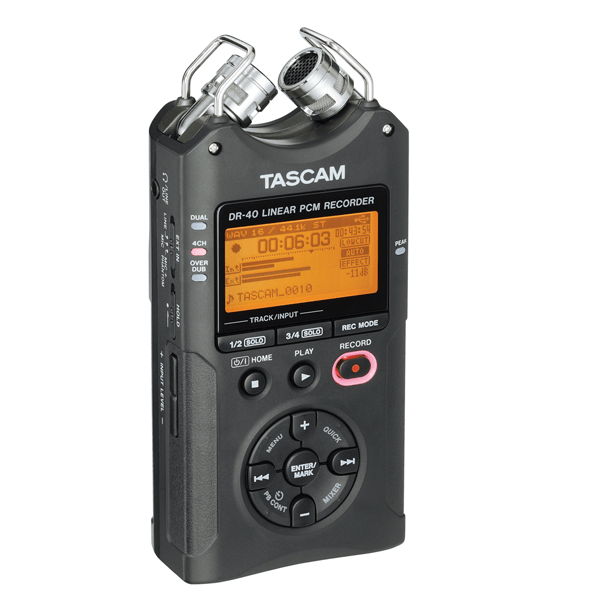

Tascam DR-40X 4-Track Portable Digital Audio Recorder

Tascam DR-40X 4-Track Portable Digital Audio Recorder



 Tascam DR-40X 4-Track Portable Digital Audio Recorder

Tascam DR-40X records four track of high-quality WAV/BWF or MP3 FILES SD or SDHC memory card. 2GB card is included. Built -in adjustable condenser microphones with X/Y or A/B recording pattern. Features include integrated speaker, built-in limiter and switchable low cut filter, dual recording mode and two- button recordable low cut filter.
Dimensions: 2.75″W x 6.1″H x 1.375″D.

Item# TEADR40

UPC: 043774033072


Tascam DR-40 Specs

Type Hand-held 4-track digital audio recorder
Recording/Reading Methods SD or SDHC card (64 MB to 32 GB)
Recording Bit Rate WAV: 16 and 24-bit
MP3: 32-320 kbps, VBR
Sampling Frequency WAV: 44.1, 48, or 96 kHz
MP3: 44.1 and 48 kHz
Number of Channels 4 (2 Stereo)
Recording Time All times are for a 1 GB memory card
Stereo Mode:
MP3: 17 hours 21 mins (128 kbps), 6 hours 56 mins (320 kbps)
WAV: 1 hour 34 mins (16-bit/44.1 kHz), 1 hour 26 mins (16-bit/48 kHz), 28 mins (24-bit/96 kHz)
Frequency Response 20 Hz~20 kHz +1/-3dB (44.1 kHz, EXT IN-LINE OUT, JEITA)
20 Hz~22 kHz +1/-3dB (48 kHz, EXT IN-LINE OUT, JEITA)
20 Hz~40 kHz +1/-3dB (96 kHz, EXT IN-LINE OUT)
Total Harmonic Distortion (THD) < 0.05% (44.1/48/96 kHz, EXT IN-LINE OUT)
S/N Ratio > 92 dB (44.1/48/96 kHz, EXT IN-LINE OUT)
A/D Conversion 24-bit
D/A Conversion 24-bit
Speed Adjustment 50-150% without affecting pitch
Connectors 2 x XLR/TRS combo inputs
1 x 3.5 mm headphone/line out
1 x high-speed USB 2.0 mini-B port
1 x remote jack
Input Impedance Mic: 2.2 kOhms
Line: 10 kOhms
Input Level Nominal: -19 dBV mic, +4 dBu line
Max: -3 dBV mic, +20 dBu line
Output Impedance 12 Ohms
Output Level Nominal: -14 dBV (10 kOhms)
Max: +2 dBV (10 kOhms)
Microphone Adjustable Stereo Condenser (X/Y and A/B)
Headphone Output 20 mW + 20 mW (32 Ohms)
Speaker 0.3 W, Mono
Filter 40/80/120 Hz Low Cut
Battery Type/Life 3 x AA (Alkaline or NiMH)
Up to 15 Hours of Continuous Operation, Phantom Power Off
Power 100-240 VAC, 50/60 Hz (via Optional AC Adapter)
Power Consumption 2.5 W Max
Dimensions (WxHxD) Mics Open: 3.54 x 6.1 x 1.38″ / 90 x 155 x 35 mm
Mics Closed: 2.76 x 6.1 x 1.38″ / 70 x 155 x 35 mm
Weight 7.5 oz / 213 g (Without Batteries)
System Requirements Windows XP, Vista, or 7, Pentium 300 MHz, 128 MB RAM, USB 2.0 Recommended
macOS v10.2 or Later, Power PC G3, G4, or G5 266 MHz Min, 64 MB RAM, USB 2.0 Recommended
Packaging Info
Package Weight 1.25 lb
Box Dimensions (LxWxH) 8.0 x 5.6 x 3.3″
