Eartec HUB5D UltraLITE 5-Person HUB Intercom System

Eartec HUB5D UltraLITE 5-Person HUB Intercom System

$1,515.00

Categories ,

Description

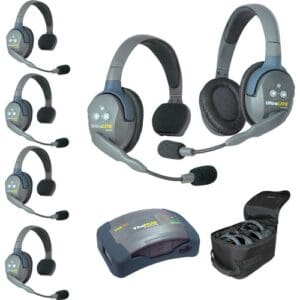

The Eartec HUB5D UltraLITE 5-Person HUB Intercom System includes one HUB Mini Base Station, five UltraLITE Double Remote headsets, six LX600LI lithium batteries, an eight-port charger, and a large soft-side case. It is designed to accommodate five-person crews who need to communicate wirelessly while simultaneously working with their hands. This system is designed to work in the United States.

The Hub is designed to extend the range of your existing Eartec wireless system by over 1000′, and moreover, to be portable; you can wear it on a belt, and thus allow your hotspot to travel with you, or place it in a single, changeable location. The UltraLITE single and dual headsets works in conjunction with the Hub for controlling the voice communication between users. They provide two-way voice communication and the microphone arm can swivel 270°.

Eartec HUB Mini Duplex Transceiver Base for 1 Plug-In & up to 8 Wireless UltraLITE Headsets (USA)

Expand the capacity of UltraLITE wireless headsets with the HUB Mini Duplex Transceiver Base for 1 Plug-In & up to 8 Wireless UltraLITE Headsets from Eartec. This transceiver can be used when on-the-go as it comes equipped with a LiPo battery or it can be plugged-in using the included AC adapter. Regardless of how you power it, the HUB offers 1/4-mile range along with two channels of communication as well as DECT technology making it easy to stay connected across the job site.

Clips to Waist

Provides total mobility and increases system capacity to seven

DECT Technology

Digital Enhanced Cordless Telecommunications technology

Dual Power Option

Choose between a rechargeable lithium battery or AC wall plug, both included

LiPo Batteries

Take advantage of 6-hour operation

No FCC Licensing

Ready-to-go right out of the box

Eartec UltraLITE Dual-Ear Remote Headset with Rechargeable Lithium Battery (USA Version)

The USA version UltraLITE Dual-Ear Remote Headset with Rechargeable Lithium Battery from Eartec is a self-contained, replacement full-duplex wireless intercom headset. It can be used to provide simultaneous talk and two-way voice communication for users that need to work with their hands, yet also require effective voice communication even in high-noise environments.

The system eliminates belt-worn radios because all electronics are built into the ear cups. The fully adjustable noise cancelling microphone ensures effective voice communication.

Eartec 8-Bay Multi-Port Charging Base

The Eartec Multi-Port Charging Base features 8 bays to recharge the batteries for UltraLITE, UltraPAK, and HUB. When the batteries reach full charge, the corresponding LED turns from red to green indicating that the battery is charged up and ready to go. The use of external batteries allows users to keep their systems up and running with minimal down time. The charge time is approximately three hours. The charging base ships with an AC adapter.

Physical
Standard DECT 6.0
Frequency 1920 to 1930 MHz
Connector 2.5 / 3.5 mm plug-in
Channel Bandwidth 1.728 GHz
Modulation Type GFSK
Transmission Speed 1.152 Mbps (baud rate)
Duplex Mode Time Division Duplex (TDD)
Encoding Speech Encoding
ADPCM / 32 bit/s
RF RF Accessing
Time Division Multiple Access (TDMA)
Range 0.25 mile / 400 m in open space
Power Supply Headset Power Supply
Rechargeable lithium 3.7 V / 800 mAh, 3.0 Wh
Charger Power Supply
AC / Adapter: Input 100 to 240 VAC
Charge Time 3 hours
Operation Time 4 hours
Storage Temperature 14 to 140°F / -10 to 60°C
Dimensions 5.50 x 1.50 x 3.75″ / 13.97 x 3.81 x 9.53 cm
Weight 4.0 oz / 113.4 g
Packaging Info
Package Weight 0.9 lb
Box Dimensions (LxWxH) 6 x 4.3 x 2.3″

Eartec UltraLITE Dual-Ear Remote Headset With Rechargeable Lithium Battery (USA Version) Specs

Headphone
Number of Earpieces Dual Earpiece
Wireless Connectivity
RF Bandwidth 1728 GHz
Wireless Modulation GFSK
DECT Standard 6.0
Duplex Mode Time-Division Duplex (TDD)
RF Channel Access Method Time-Division Multiple Access (TDMA)
Speech Encoding ADPCM / 32 b/s
Transmission Speed 1.15 Mb/s
Wireless Range 1312′ / 400 m
Frequency 1920 to 1930 MHz
Battery
Battery Chemistry Lithium-Ion
Capacity (mAh) 800 mAh
Runtime 6 Hours
Recharge Time 3 Hours
DC Input Power 5 VDC at 1000 mA
Environmental
Storage Temperature 14 to 140°F / -10 to 60°C
Physical
Weight 4 oz / 113.4 g
Packaging Info
Package Weight 0.6 lb
Box Dimensions (LxWxH) 6.4 x 5.9 x 2.6″

Eartec 8-Bay Multi-Port Charging Base Specs

For Use with 8 x UltraLITE, UltraPAK, and HUB batteries
Charge Time Approximately three hours
Input Power 100 to 240 VAC
Dimensions Not specified by manufacturer
Weight Not specified by manufacturer

Additional information

Weight 1 lbs
Dimensions 10 × 10 × 10 in
