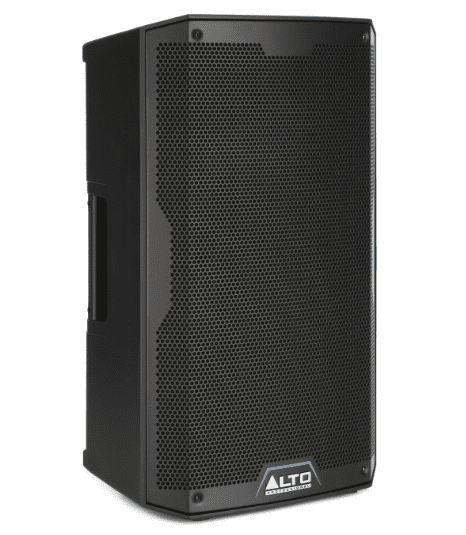

ALTO TX 312 700 WATT 2 WAY 12 IN ACTIVE LOUDSPEAKER

ALTO TX 312 700 WATT 2 WAY 12 IN ACTIVE LOUDSPEAKER

$239.00

Categories ,

Description

lto Professional TX312, a 700W powered PA speaker that functions as a main PA in a wide variety of positions and with a pair, can cover an audience up to 250. The simple interface helps working presenters, musicians, instructors, performers, and A/V providers get powerful, clean, and clear sound easily.

The speaker provides 90×60° coverage and 118 dB of peak SPL—plenty of volume for smaller venues including houses of worship, conference centers, performance spaces, and meeting rooms. The highly efficient 700W Class-D amplifier powers the 1″ titanium compression driver and 12″ woofer, providing crisp, detailed sound with a wide frequency range from 20 kHz down to 75 Hz.

The rear panel features a single combo XLR-1/4″ mic/line input and an XLR link output to connect additional speakers. Controls for volume and contour allow you to dial in your best sound, while the ground-lift switch removes any ground loop hum for clean, clear audio. The trapezoidal shaped enclosure includes a 1.4″ pole cup, allowing you to use the speaker upright for mains or on its side for wedge monitoring positioning.

  • 700W peak Class D power
  • The 90° H x 60° V horn delivers greater coverage
  • The full grille delivers style and provides protection for your investment
  • 12″ LF driver
  • 1″ neodymium HF compression driver
  • Lightweight, portable design for main or wedge monitor operation
  • Standard speaker pole socket
  • Biamplified design with precision active crossover and EQ
  • Balanced XLR Mic/Line input, Link Output and Volume control
  • Integrated analog limiter and overload protection circuitry
  • Contour switch with low- and high-frequency +3 dB boost
  • Ground-lift switch removes unwanted hum or buzz
UPC: 816311012010

Alto Professional TX312XUS Specs
Configuration Active 2-Way
Enclosure Type Bass-Reflex Loudspeaker/Floor Monitor
Total Power Capacity 700 W
Amplifier Power Rating 350 W RMS
700 W Peak
Amplifier Class Class-D
Drivers
HF Driver 1 x 1″ / 25.4 mm Titanium Compression Driver
MF Driver None
LF Driver 1 x 12″ / 30.5 cm Woofer
LF Voice Coil 2″ / 50.8 mm
Performance
Frequency Response 75 Hz to 20 kHz -3 dB
Maximum SPL 118 dB (Peak)
Coverage Angle 90° H x 60° V
Protections Crossover Overload, Output Limiter
Connectivity
Audio I/O 1 x Combo XLR-1/4″ TRS Female Balanced/Unbalanced Mic/Line Input
1 x XLR 3-Pin Male Link Output
Network I/O None
USB None
Wireless Connectivity None
Signal Processing
Crossover 2.5 kHz
Parametric EQ None
Semi-Parametric EQ None
Filters None
Alignment Delay None
Phase Adjustment None
Power
AC Input Power Universal:
100 to 120 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz
AC Power Connector 1 x IEC Input
Power Consumption 350 W
Physical
Mounting 1 x 1.4″ / 36 mm Pole Socket (Bottom)
Handles 1 x Each Side
Construction Material Metal Grille, Polypropylene
Dimensions 23.7 x 15 x 13.5″ / 602 x 381 x 342.9 mm
Weight 29.3 lb / 13.3 kg
Packaging Info
Package Weight 34 lb
Box Dimensions (LxWxH) 26.5 x 18 x 17″

Additional information

Weight 1 lbs
Dimensions 20 × 25 × 15 in
