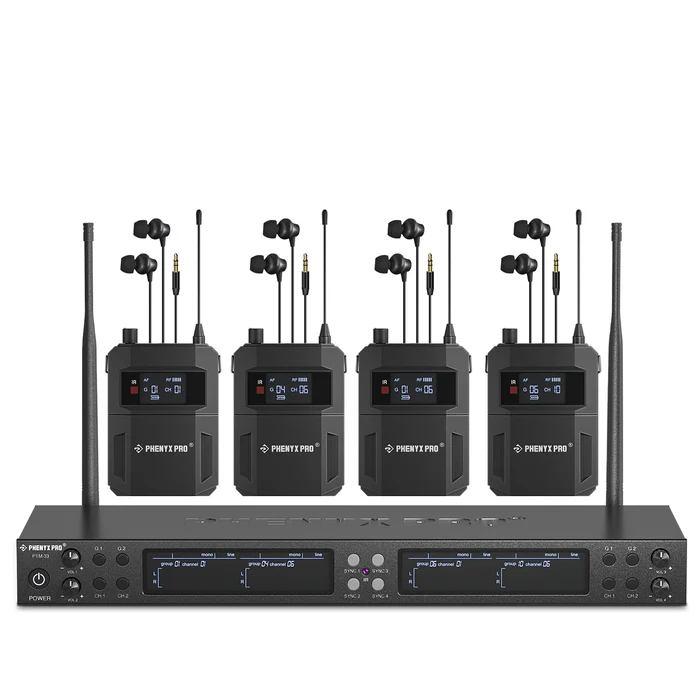

PHENYX PTM-33-4B 4 Channel Wireless In-Ear Monitoring System

PHENYX PTM-33-4B 4 Channel Wireless In-Ear Monitoring System

$499.00

Category

Description

Innovative 4-channel IEM. Designed for Live Band.

The PTM-33 wireless IEM system tackles the challenges of floor monitor in live performances, allowing you to freely move on stage, engage with fans, and share a monitor station with your bandmates while personalizing your monitoring experience. The flexible and diversified mono monitoring experience lets you focus more on your content. With peerless 4 channels under one roof, the exceptional entry-level monitoring solution allows you to better navigate your music adventures.

Features

  • Crystal-clear mono audio without latency lasts throughout your whole performance.
  • The LOOP OUT design for flexible routing operation.
  • Four stand-alone mixes offer a flexible and diverse monitoring experience.
  • Selectable UHF frequency design to avoid interference easily.
  • Quick IR sync and one-touch frequency selection for fuss-free operation.
  • One transmitter base unit can add as many bodypack receivers as you need.
  • Rugged-built receivers and bodypacks with a sleek design.
  • Rack-mountable with brackets included in the package.
  • Up to 164ft/50m free operation range.
  • Operates in the 900MHz/500MHz range. ; 542.55-579.8MHz (4×25 frequencies).

/ Dive into the Diversified Monitoring Series

Phenyx Pro PTM-33-4B Specification


Frequency Range 530MHz – 580MHz;
902Mhz – 928MHz
(Depends on local regulations)
Transmitter output level 10dBm
Dynamic range >90dBm
Frequency response 50Hz – 16KHz
Working distance 50m/164ft
Max audio input level +6dBV
Gain adjustment range 40dB
Input impedance 6.8kΩ
Power requirement INPUT:
AC 110V – 240V, 50/60 Hz.
OUTPUT:
DC 13.5V, 500mA
Audio input level 80mV
Sensitivity -90dBm
Battery life >6 hours

Additional information

Weight 1 lbs
Dimensions 21 × 11 × 6 in
