Description

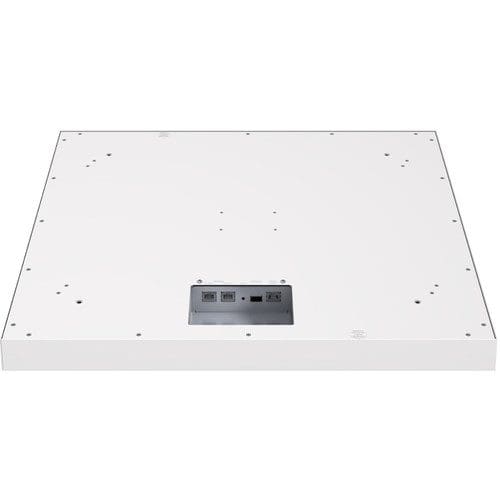

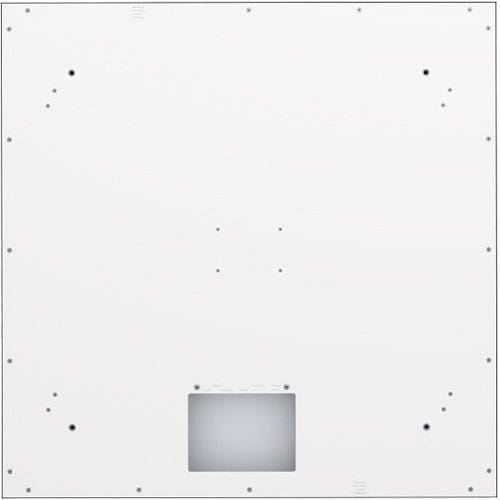

Sennheiser TeamConnect SL Ceiling 2 Microphone Array

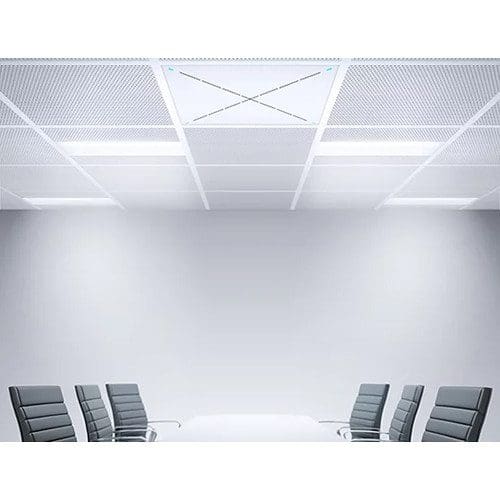

The TeamConnect SL Ceiling 2 Microphone Array from Sennheiser is designed to provide better audio quality for voice and video conferences. It features adaptive beamforming technology that automatically follows the active speaker’s voice, letting people speak naturally whether they are sitting, standing, or walking around the room.

TeamConnect Ceiling 2 offers great versatility and interoperability with support for Dante networks and POE (Power over Ethernet). It is compatible with Sennheiser’s Control Cockpit software for efficient remote management and offers remote configuration and monitoring via an open media control protocol (API), allowing for easy integration into media systems. A 3-pin Phoenix connector and eight self-adhesive rubber feet are also included.

Ceiling microphone array with patented automatic speaker position detection and dynamic beamforming for best speech intelligibility

Analog and digital (Dante) audio outputs for easy connectivity to video and audio conference systems

Configuration and monitoring via Sennheiser´s Control Cockpit software

Open API for media and camera control applications

Several installation options via suspension kit, flush mount or surface bracket (sold separately)

Key Features

For Fixed Conference Installations
28 Sennheiser KE 10-237 Mic Capsules
Automatic Beamforming Technology
Focuses on Whoever Is Speaking in Room
2 x Dante Interface with RJ 45 Outputs
3-Pin Terminal for Analog Audio Output
RJ 45 Ethernet for Network Control
Sennheiser Control Cockpit Software
Includes a 3-Pin Phoenix Connector
8 x Self-Adhesive Rubber Feet

UPC: 615104311893

Sennheiser Teamconnect SL Specs

Audio Output	1 x 3-Pin Terminal (Fits Phoenix Contact MCVW 1.5-3-ST-3.81) 2 x Digital Dante Network Audio (RJ-45 Primary and Secondary)
Ethernet Control	1 x RJ-45 Ethernet Port for PoE Power Supply and Data/Control Communication
Supply Voltage	44 to 57 VDC PoE IEEE 802.3af Class 3
Power Consumption	Maximum 8.8 W
Plenum Rating	Tested According to UL 2043
Transducer Principle	Pre-Polarized Condenser Microphone
AF Frequency Response	160 Hz to 18 kHz
Sensitivity	0 dBV/Pa (988 mV/Pa)
Signal to Noise Ratio	83 dB (A)
Latency	4 ms
Equivalent Noise Level	11 dB (A)
Polar Pattern (Microphone)	28 Capsules
Pick Up Pattern	Beam Pattern
Max Sound Pressure	104 dB SPL
Dynamic Range	93 dB (A)
Temperature	Operation: 32 to 104°F / 0 to 40°C Storage: 14 to 140°F / -10 to 60°C
Humidity (Relative)	20 to 95% Non-Condensing
Dimensions	23.2 x 23.2 x 1.7″ / 59 x 59 x 4.3 cm
Weight	12.5 lb / 5.7 kg

Packaging Info

Package Weight	18.73 lb
Box Dimensions (LxWxH)	27.4 x 27.4 x 5.3″

Additional information

Weight	1 lbs
Dimensions	24 × 24 × 2 in
