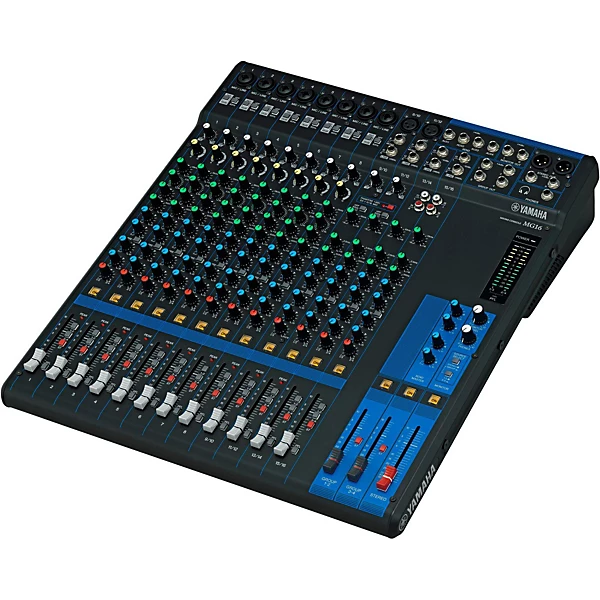

Yamaha MG16 16-Channel Mixer open box full factory warranty

Yamaha MG16 16-Channel Mixer open box full factory warranty

Original price was: $549.95.Current price is: $375.00.

Categories ,

Description

BRAND NEW , NO BOX , DISPLAYED IN SHOWCASE , HAS EVERYTHING BUT ORIGINAL BOX

Yamaha’s MG16 mixing console combines a straightforward interface with high-end components to deliver stunning sonic clarity for live and studio use. This 16-channel analog mixer features Yamaha’s studio-grade D-PRE preamps, which utilize discrete components and an inverted Darlington circuit to provide more power and lower impedance for a natural, musical tone. With 3-band EQ, high-pass filters and one-knob compressors on every channel, the MG16 gives you flexible, intuitive control over your mix.

16 High-Quality Mic Preamps for a Transparent Sound

The quality of your preamps determines the direction of your mix. The MG16’s D-PRE preamps are designed to impart zero color or distortion, allowing the natural tone of voices and instruments to shine through. With 48V phantom power, you have enough clean gain for condenser mics and active DI boxes. pads help manage hot signals from line-level devices. The end result is a mix with depth, detail and clarity.

Shape Your Tone With 3-Band EQ and High-Pass Filters

The MG16’s 3-band EQ on every channel provides nuanced tone shaping for a balanced, professional mix. Tweak the highs for extra presence, boost the lows for a solid foundation and sweep the mids to sit vocals and instruments just right in your mix. High-pass filters eliminate unwanted rumble and make individual channels and your overall mix tighter and cleaner.

Quickly Dial in Dynamics With One-Knob Compressors

One-knob compressors on each mono channel provide smooth, intuitive dynamics control for a cohesive mix. Increase sustain on guitars, add punch to drums and bass, tighten up vocals or bring background instruments forward in the mix. With a single turn of a knob, you have transparent compression right at your fingertips.

Digital Effects Provide Extra Depth and Dimension

The MG16 features a suite of SPX digital effects to enhance your mix for both live performance and recording. Choose from reverbs and delays to add space and depth. Tweak the effects level on each AUX send for the ideal blend in your monitors and front-of-house mix. With intuitive navigation, you’ll dial in a perfect custom reverb in seconds.

Yamaha MG16 16-Channel Mixer With Compression
Yamaha MG16 16-Channel Mixer With Compression
Yamaha MG16 16-Channel Mixer With Compression

Features

  • 16-channel mixing console
  • Max. 10 mic/16 line inputs (8 mono + 4 stereo)
  • 4 GROUP Buses + 1 Stereo Bus
  • 4 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-knob compressors
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Rack mount kit Included
  • Metal chassis

Specs

  • Onboard processors : SPX algorithm: 24 programs
  • Phantom power: +48 V
  • Input Channels: 8 Mono[MIC/LINE], stereo[LINE]: 4
  • Output Channels: STEREO OUT: 2
  • MONITOR OUT: 1
  • PHONES: 1
  • AUX SEND: 1
  • Bus: Stereo: 1, GROUP: 4, AUX[FX]: 4
  • Input Channel Function
  • PAD: 26dB (Mono)
  • HPF: 80Hz, 12 dB/oct (Mono)
  • COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0dB to 7dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
  • EQ HIGH: Gain: +15dB/-15dB, Frequency: 10kHz shelving
  • EQ MID: Gain: +15dB/-15dB, Frequency: 2.5kHz peaking
  • EQ LOW: Gain: +15dB/-15dB, Frequency: 100Hz shelving
  • PEAK LED: LED turns on when post EQ signal reaches 3dB below clipping
  • Level Meter: 2 x 12-segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -20, -25, -30 dB]

Additional information

Weight 1 lbs
Dimensions 21 × 3 in
