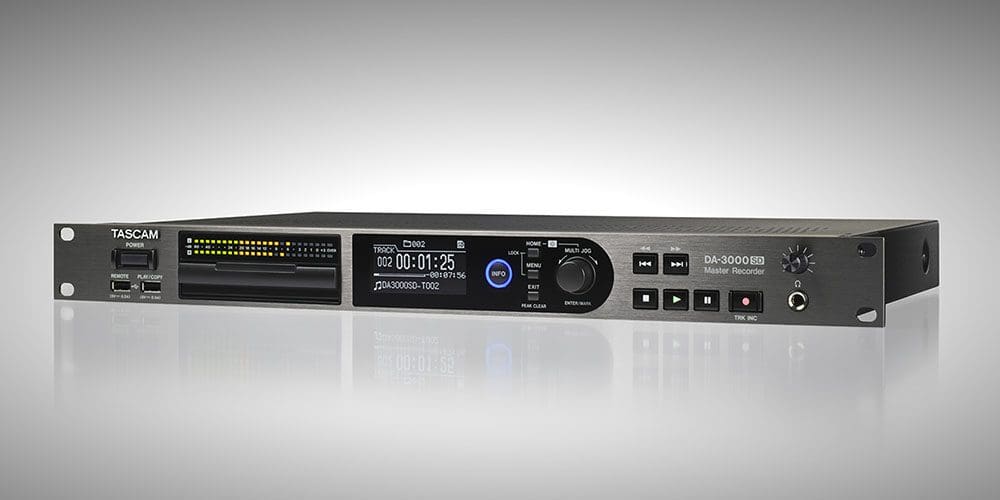

Tascam DA3000SD 2-channel DSD/PCM Master Recorder and AD/DA Converter

Description

Provides reference-grade master recording and AD/DA conversion
Supports PCM recording up to 192kHz; supports DSD recording up to 5.6MHz
Supports SDXC cards up to 512GB and USB memory for playback and mutual copying with SD cards
Direct mode delivers crystal-clear, phase-coherent AD/DA conversion
Burr-Brown PCM1175 D/A converters with isolated output circuits to safeguard against interference between channels
Low-impedance capacitors and low-noise resistors
EI-core transformer minimizes noise contamination and enables higher-quality signals
High-end temperature-compensated crystal oscillator ensures jitter-free performance
High-precision master clock generator keeps your entire studio in lock-tight synchronization
Intuitive user interface with a 128- x 64-dot OLED screen and vivid, 24-segment LED level metering
Data-preserving Panel Lock and Auto File Save functions
Conveniently rackmountable with noiseless, fan-free cooling

Form Factor	Rackmount
Converter Type	AD/DA Converter
Number of Channels	2
Maximum Sampling Rate	192 kHz / 24-Bit (PCM)
Number of Microphone Inputs	2

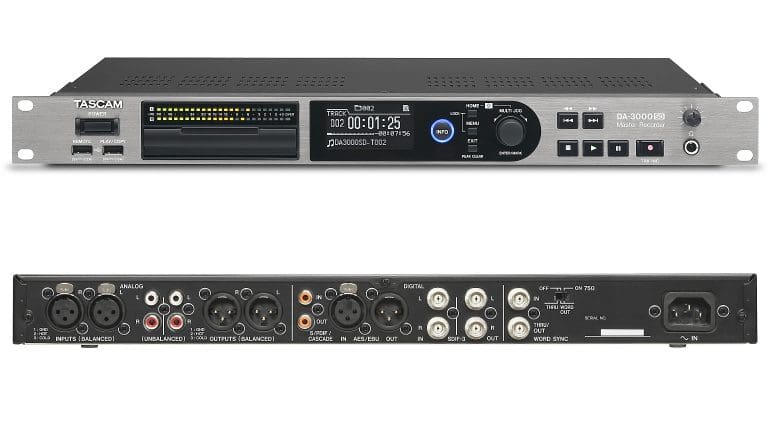

Analog Audio I/O	2x XLR 3-Pin Balanced Mic Input 2x XLR 3-Pin Balanced Mic Output 2x Stereo RCA Unbalanced Line Input 2x Stereo RCA Line Output 1x 1/4″ TRS Headphone Output (Front Panel)
Digital Audio I/O	1x RCA Coaxial S/PDIF Input 1x RCA Coaxial S/PDIF Output 1x XLR 3-Pin AES3 Input 1x XLR 3-Pin AES3 Output 2x BNC Coaxial SDIF-3 Input 2x BNC Coaxial SDIF-3 Output

Converter Type	AD/DA Converter
Number of Channels	2
Conversion Formats	AES3
Converter Circuitry	A/D Chipset: 2x Burr-Brown
Display	1x OLED
Maximum Sampling Rate	192 kHz / 24-Bit (PCM)
Number of Microphone Inputs	2
Gain/Trim Range	RCA Line Inputs: -10 dBV to +6 dBV XLR Mic Inputs: +4 dBu to +24 dBu

Connectivity

Analog Audio I/O	2x XLR 3-Pin Balanced Mic Input 2x XLR 3-Pin Balanced Mic Output 2x Stereo RCA Unbalanced Line Input 2x Stereo RCA Line Output 1x 1/4″ TRS Headphone Output (Front Panel)
Phantom Power	No
Digital Audio I/O	1x RCA Coaxial S/PDIF Input 1x RCA Coaxial S/PDIF Output 1x XLR 3-Pin AES3 Input 1x XLR 3-Pin AES3 Output 2x BNC Coaxial SDIF-3 Input 2x BNC Coaxial SDIF-3 Output
Host Connection	No
USB (Non-Host)	1x USB-A (External Storage) 1x USB-A (Remote)
Sync I/O	1x BNC Word Clock Input 1x BNC Word Clock Output
Network I/O	No
MIDI I/O	No
Expansion Slots	No
Wireless	IR *Built-In

Performance

Frequency Response	20 Hz to 20 kHz ±0.1 dB
Maximum Input Level	Stereo RCA Line Inputs: +6 dBV XLR Mic Inputs: +24 dBu
Maximum Output Level	RCA Line Outputs: +6 dBv XLR Line Outputs: +24 dBu
Headphone Output Power	45 mW into 32 Ohms (0.1% THD)
Impedance	XLR Mic Inputs: 10 Kilohms RCA Line Inputs: 22 Ohms RCA Line Outputs: 200 Ohms XLR Mic Outputs: 100 Ohms
SNR	118 dB (PCM, Balanced) 116 dB (PCM, Unbalanced) 116 dB (DSD, Balanced) 114 dB (DSD, Unbalanced)
THD	0.001% (Unbalanced) 0.003% (Balanced)
Crosstalk	105 dB (PCM, DSD)

Digital Audio

Compatibility

OS Compatibility	No
Mobile App Compatible	No
Mobile Device Compatibility	No

Power

Power Requirements	AC/DC Power Adapter (Included)
AC Input Power	User Selectable: 120 VAC, 60 Hz 220 to 240 VAC, 50 / 60 Hz
AC/DC Power Adapter	Included
Power Consumption	24 W
